Traffic Volume

Region availability: Melbourne, Metropolitan Melbourne

This layer visualises the volume of each Link on the map. You can choose to view the actual volume (at the selected time), or any volume predictions up to 3 hours ahead.

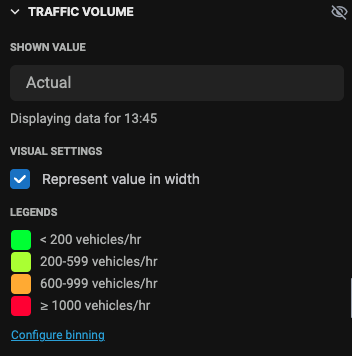

Configure shown value​

Use the "Shown Value" selector to select which data you want to see. "Actual" means the actual volume shown at the selected time. "15-minute prediction" means the predicted volume 15 minutes ahead since the selected time.

Below the selector, there is a text that shows you which time is shown on the map.

note

When you select a prediction, the data displayed is NOT at the selected time. For example, if at 9am you see 30-minute prediction, the maps shows the prediction for 9.30am.

Configure visualisation​

There is an option to represent the value in width. If you enable this option, links with higher value will have a thicker line than the rest. This is especially useful when you zoom out the map and see a bigger picture.

The left image shows the map without this option enabled, while the right image shows the map with this option enabled.

Configure binning​

The layer comes with a default binning partition of 200, 600, and 1000 vehicles/hour.

You can change this default binning by using the "Configure binning" tool. When you click on the button, a text field will appear.

Enter a comma-separated string representing the binning boundaries. For example, if you want to group the values into these bins:

  • 0 - 99
  • 100 - 199
  • 200 - 299
  • above 300

Then you should enter this binning boundaries:

100, 200, 300

Note that 0 is not included in the string.
